How to Choose Pool Filter Cartridge Size and Measure It

One wrong cartridge turns a simple filter swap into a week of cloudy water, a strained pump, and a second trip to the store. Knowing how to choose pool filter cartridge size before you order saves you money and keeps your system running the way it should.

The challenge is that cartridge sizing involves more than just "small, medium, or large." You need to match physical dimensions, end-cap configurations, and filtration capacity to your specific filter housing. This guide walks you through the entire process so you can measure, match, and order with confidence on the first try.

Why Correct Cartridge Sizing Protects Your Pool System

A cartridge that's even half an inch too short or too wide won't seal properly inside the filter housing. That gap lets unfiltered water bypass the media entirely, sending debris and fine particles back into your pool. You'll notice hazy water within days, and no amount of extra chlorine fixes a mechanical sealing problem.

An undersized cartridge also forces your pump to work harder. Restricted or uneven flow raises internal pressure, shortens pump motor life, and drives up your electricity bill. Oversized cartridges create the opposite issue: they won't fit into the housing at all, or they compress the pleats and reduce effective surface area.

Cost Savings Beyond the Cartridge Itself

Getting the size right on the first order eliminates return shipping fees and rush-order charges for a second attempt. It also protects expensive downstream equipment. IBISWorld reports that the U.S. pool cleaning services industry is projected to reach $8.8 billion in 2025, and a significant portion of those service calls stem from preventable filter and pump problems. Your filter cartridge is a $30–$80 part that guards a $500+ pump.

What You Need Before You Start

Gather these items before removing your old cartridge:

• A flexible tape measure (rigid rulers won't wrap around the cartridge diameter accurately)

• Your filter housing model number, usually printed on a label on the tank body or lid

• A smartphone or notepad to record measurements and photograph any visible part numbers

• A flat, clean surface to lay the cartridge on after removal

If your filter label has faded beyond recognition, don't worry. Physical measurements can identify the correct replacement even without a model number.

How to Measure Pool Filter Cartridge Dimensions Step by Step

Turn off the pump and relieve pressure through the air relief valve on top of the filter tank before opening anything. Remove the tank lid or clamp band, then carefully lift the cartridge straight up and out.

Caution: Never open the tank while it is under pressure. If you skip the pressure-relief step, the lid or clamp can pop loose and cause serious injury. If the lid feels stuck, stop and double-check that the pump is off and the pressure is fully released.

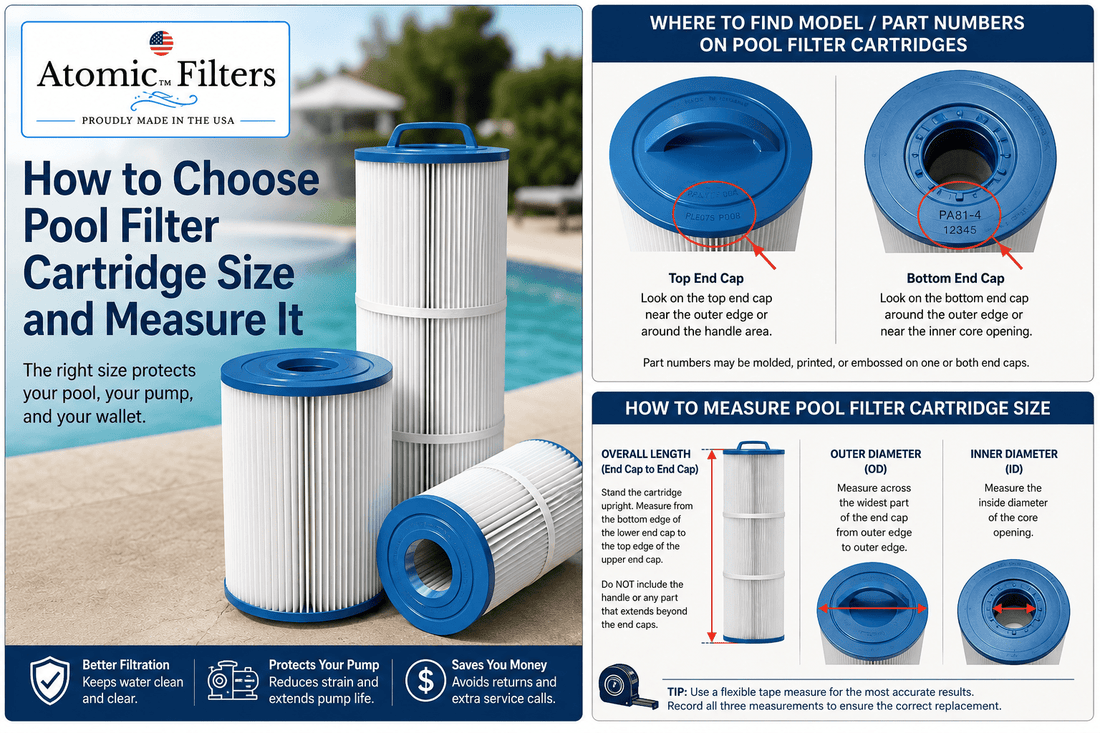

Measure the Outside Diameter at the Widest Point

Lay the cartridge on a flat surface. Place the tape measure along the widest part of the end cap, going straight across the face from one outer edge to the other. That number is the outside diameter (OD).

Make sure the tape measure is laying flat across the endcap at its widest point, then write the number down.

Measure the Overall Length

Stand the cartridge upright on a flat surface. Measure from the very bottom of the lower end cap to the very top of the upper end cap or handle. Include everything. Some manufacturers list length excluding the handle, which causes confusion when cross-referencing. Write down the full measurement and note whether a handle or threaded spigot extends beyond the main body.

Check the Inner Core Opening and End-Cap Style

Measure the inside diameter of the hole running through the center of the cartridge. This core opening typically ranges from 1.5 to 2.5 inches. Then look at both end caps closely. The top might feature an open hole, a closed cap, a handle, or a threaded fitting. The bottom might have an open hole, a spigot, or a flat closed cap.

Two cartridges can share identical length and diameter but use completely different end-cap configurations. Installing a cartridge with the wrong end-cap style prevents a proper seal, even if every other dimension matches perfectly.

Pool Filter Cartridge Size vs. Square-Foot Rating

This distinction trips up more homeowners than any other sizing issue. Physical dimensions (length, diameter, core opening) describe the cartridge's shape. The square-foot rating describes how much filter media surface area the pleats provide.

A 100-square-foot cartridge and a 200-square-foot cartridge might share the same diameter but differ significantly in length or pleat count. When someone says they need a "bigger" filter, they could mean either physically larger dimensions or more filtration surface area. These are separate questions with different answers.

Matching Square Footage to Your Pool Volume

A general rule of thumb: your cartridge filter system should provide roughly 100 square feet of filtration area per 10,000 gallons of pool water, assuming a standard residential pump. A 15,000-gallon pool typically needs at least 150 square feet of cartridge area.

That said, if your existing system has worked well with a specific cartridge, just match the original specifications. Upgrading square footage requires a larger filter housing, not just a different cartridge element. You can't stuff a 200-square-foot cartridge into a housing designed for 100 square feet.

How to Match a Replacement Cartridge by Model Number or Measurements

The fastest path uses your filter housing model number. Look for a sticker or stamped text on the filter tank itself, not on the old cartridge. Brands like Hayward, Pentair, and Jandy print model numbers on the tank body. Searching that model number on a retailer's site instantly narrows your options.

If you only have dimensions, you can still find an exact match. Enter your outside diameter, length, and end-cap style into a cross-reference tool. Retailers like Atomic Filters' pool and spa filter collection organize cartridges by compatible OEM model numbers, so you can search by the original part number or by physical dimensions.

When Dimensions Override Brand Labels

Aftermarket cartridges use cross-reference numbers that map to multiple OEM part numbers. A single replacement cartridge might be compatible with a Hayward CX880XRE, a Pleatco PA106, and a Unicel C-7488. If your old cartridge label listed any of those numbers, you can find the right match quickly. For example, Atomic Filters offers a USA-made replacement for the Hayward SwimClear C4025 and C4020 series that cross-references all of those part numbers.

When dimensions and model numbers conflict, trust the physical measurements. Labels peel off and get mixed up. A tape measure doesn't lie.

Common Fit Problems and How to Avoid Them

The most frequent complaint after ordering the wrong cartridge is "it looked right but wobbles inside the housing." That wobble usually means the end-cap style doesn't match. A cartridge with an open bottom in a housing that requires a spigot connection will sit loosely and let water pass around the seal.

Another common mistake: ordering a cartridge that's correct for your brand but wrong for your specific model. Hayward alone makes dozens of filter housings. A cartridge designed for the Star-Clear C500 won't fit a Star-Clear Plus C1200, despite both carrying the Hayward name.

How Much Size Variance Is Acceptable?

For diameter, you have almost no tolerance. Even a quarter-inch difference prevents proper seating. Length tolerance is slightly more forgiving, but only by about an eighth of an inch. If your measurement falls between two listed sizes, always double-check the model number rather than guessing.

Choosing Between OEM and Aftermarket Cartridges

OEM cartridges come with brand-name packaging and premium pricing, often $80–$150 per cartridge. Aftermarket alternatives use the same physical specifications and comparable filter media at significantly lower cost. Atomic Filters, for instance, offers compatible Jandy pool cartridge filters at up to 40% less than OEM pricing.

The trade-off? Some pool owners report that certain budget aftermarket cartridges use thinner pleat material that degrades faster. The solution is choosing a reputable aftermarket manufacturer that uses quality media and publishes exact cross-reference specs. Price alone shouldn't drive the decision. A cartridge that lasts 12 months at $50 beats one that lasts 6 months at $35.

When to Replace Your Cartridge

Most cartridge filters last 12 to 24 months with regular cleaning, depending on pool usage and debris load. Replace the cartridge when cleaning no longer restores normal operating pressure, or when you notice frayed pleats, cracked end caps, or persistent discoloration that chemical soaking can't remove.

Frequently Asked Questions

What should I do if my old cartridge is swollen or misshapen and hard to measure?

Let the cartridge dry completely, then take measurements at multiple points and use the most consistent readings. If the plastic end caps are warped, rely more heavily on the filter tank model number or a verified cross-reference from a reputable retailer.

How can I confirm end-cap style compatibility before I place an order online?

Compare your cartridge to product photos that clearly show both end caps, not just the pleats. If the listing does not specify details like open ends, closed ends, handles, or threaded connections, contact the seller and ask for confirmation in writing.

Are pleat count and pleat depth important when selecting a replacement cartridge?

Yes, pleat design can affect how quickly the cartridge loads with debris and how well it cleans during maintenance. When two options fit, choose the cartridge that matches the original pleat structure or is rated for the same filter model by a trusted manufacturer.

Can I use a “universal” cartridge if it is close to my measurements?

Universal fit claims are risky because small differences in end-cap geometry and sealing surfaces can cause bypass or instability. Choose a cartridge that is explicitly cross-referenced to your filter housing model or to a known compatible part number.

What is the safest way to install a new cartridge to avoid leaks or bypass?

Inspect and clean the sealing surfaces inside the tank, then lubricate the tank lid O-ring with pool-safe silicone lubricant if the manufacturer allows it. Seat the cartridge straight down without forcing it, and reassemble the clamp or band evenly to prevent uneven sealing.

How should I store a spare cartridge so it stays usable?

Keep it in a cool, dry place out of direct sunlight, and leave it in its protective packaging to prevent dust and UV damage. Avoid storing it near pool chemicals, which can off-gas and degrade plastics and filter media over time.

What maintenance habits help a correctly sized cartridge last longer?

Rinse on a consistent schedule, rotate the cartridge as you spray to flush between pleats, and avoid high-pressure nozzles that can tear the media. Keeping water chemistry balanced and controlling debris with skimming and baskets also reduces how hard the cartridge has to work between cleanings.
