How to Measure and Choose Air Filter Sizes for Your Home

Air Filter Sizes confuse a lot of homeowners, but getting them right is one of the simplest ways to protect your HVAC system and improve indoor air quality throughout your home.

This guide will help you measure filters accurately, understand the difference between nominal and actual sizes, choose the best size and type for your system, and replace filters without guesswork or repeated trips to the store.

Measure-and-Replace Outcome: What You'll Be Able to Do

By the end of this how-to, you'll be able to identify the correct air filter size for any return or furnace, pick a compatible filter type, and swap it out confidently in just a few minutes.

Before you start, make sure you have a few basic items and conditions in place so measuring and replacing your filter is safe and straightforward.

• A sturdy step stool or ladder if your return grille is in the ceiling
• A flashlight or phone light to see into the filter slot clearly
• A retractable tape measure that reads in inches
• A pen and paper or phone notes to record your measurements
• The HVAC system turned off at the thermostat while you work

Step-by-Step Filter Measuring and Replacement Instructions

1. Turn off your HVAC system and locate the existing filter. Set your thermostat to "Off" so the blower does not turn on while you are working. Find the filter either behind a large return grille (often in a hallway, ceiling, or wall) or inside the furnace or air handler cabinet. Opening the grille or panel carefully will expose the filter. This step keeps you safe and prevents dust from being pulled into the system while the filter is out.
2. Remove the old filter and check the size printed on the frame. Slide the filter straight out, noting the arrow that shows airflow direction. Most residential filters have a three-number size (for example, 16x25x1) printed along the cardboard edge. This is the nominal size, which is typically what you'll shop by. Write these numbers down clearly, including the thickness, so you can compare them to your measurements.

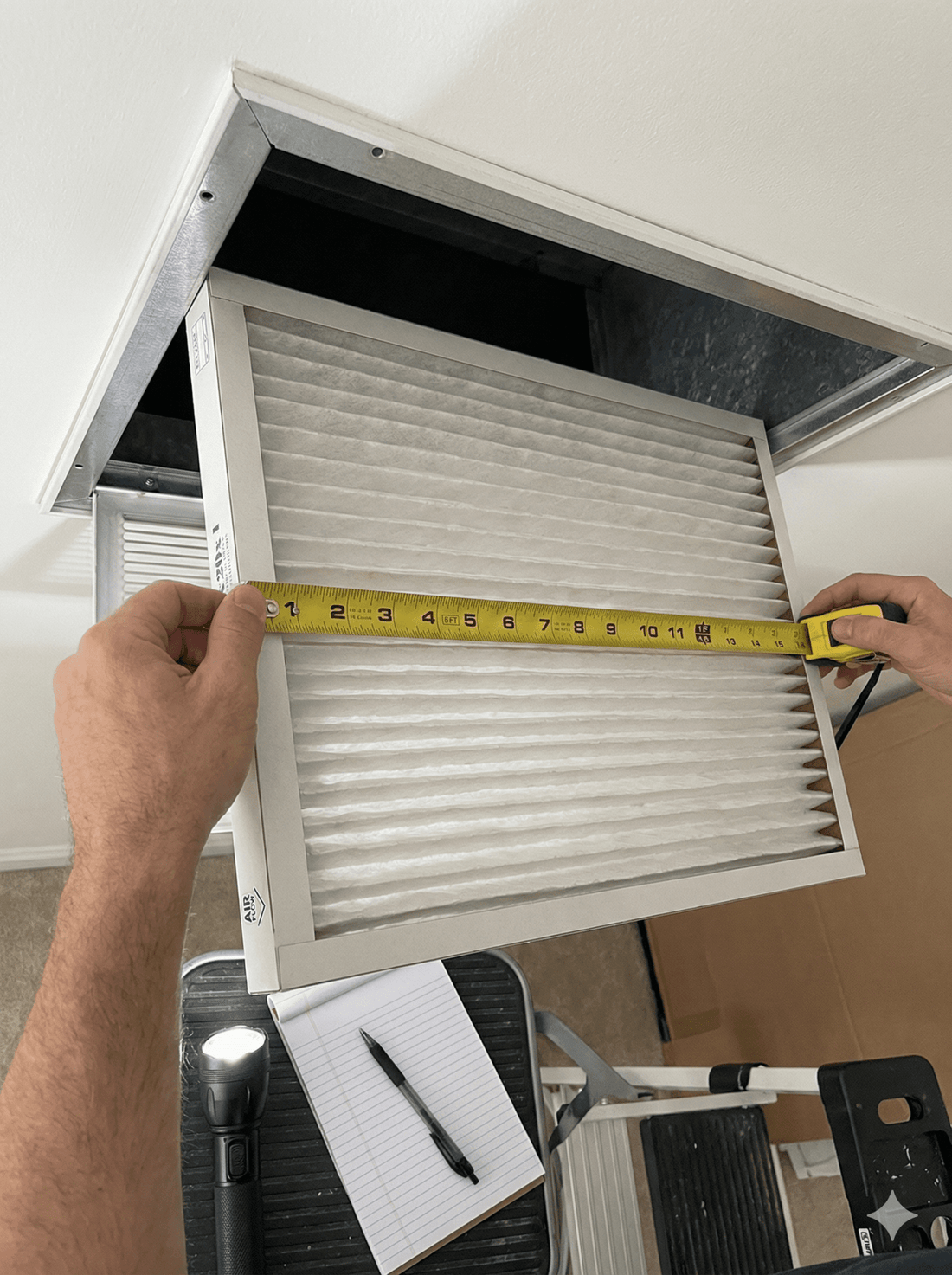

3. Measure the filter's length, width, and thickness in inches. Lay the filter flat and measure the long side, then the short side, then the depth. Read to the nearest 1/8 inch. You'll often notice the actual dimensions differ from the printed numbers—sometimes smaller, sometimes larger, and occasionally a mix of both. This variation is intentional so the filter can slide into the slot, and understanding it will help if you ever cannot find your printed size in stores.
4. If no filter is present, measure the opening instead. Occasionally, you'll discover the system is running without a filter or the previous one was removed. In that case, measure the width and height of the metal slot or the inside of the grille where the filter sits, then measure the maximum depth available. Record these numbers carefully. They will guide you toward the closest standard nominal size that still seals properly.
5. Convert your measurements to the closest nominal size. Take the measured length and width and compare them to common nominal sizes. In many cases you'll round up to the nearest whole inch (for example, 15.5 x 24.5 x 0.75 inches often corresponds to 16x25x1), but this isn't always the case—some filters have actual dimensions that exceed their nominal size in one or more directions. When in doubt, compare your measurements to a detailed size chart or the filter specifications from the manufacturer.
6. Choose a compatible filter type, install it, and restore power. Once you know the correct nominal size and thickness, select a filter with an appropriate MERV rating and material for your home and slide it into the slot following the airflow arrow. Replace the grille or panel securely and then turn your thermostat back on. Mark the installation date so you know when it will need to be replaced again.

How Air Filter Sizing Affects Comfort, Equipment, and Air Quality

Every central heating and cooling system is designed around a specific air filter slot. When the filter fits correctly, air passes through the media, dust is trapped, and the blower can move the right amount of air through your ductwork.

A filter that is too small can leave gaps around the frame, allowing air to bypass the media entirely and carry dust and allergens straight into the equipment and your living spaces. That said, for return grilles specifically, a slightly undersized filter can still work well as long as it fully covers the opening inset—when the blower runs, the suction pulls the filter snugly against the inset, creating a reasonable seal.

Beyond cleanliness, proper sizing also influences system efficiency. A filter that is too large or forced into a space can bow, restricting airflow and making the blower work harder. That extra strain can shorten the life of expensive components and contribute to uneven temperatures from room to room.

Filter placement also affects noise. A loose-fitting filter in a ceiling return grille may rattle or make noise when the blower cycles on and off. Wall-mounted returns are generally less prone to this issue since gravity helps keep the filter seated. If you notice noise from your ceiling return, double-check that the filter fits snugly and consider whether a slightly larger size might reduce movement.

The stakes are high across the residential market: HVAC filters represented 33.2% of total residential filter revenue in 2025, according to the Straits Research residential filters market report, which is one reason accurate sizing guidance has become a priority for both manufacturers and service providers.

When you understand the basic logic behind sizes and how your return or furnace is built, choosing and replacing filters becomes a predictable, low-stress routine instead of a guessing game.

Air Filter Sizes Explained: Nominal vs. Actual Measurements

One of the most confusing parts of buying filters is the difference between nominal and actual size. The numbers printed on the filter frame or box are not usually the exact physical measurements of the filter itself.

Nominal vs Actual Air Filter Sizes at a Glance

Nominal size is the rounded, "named" size you see on packaging, such as 16x20x1. It is a convenient label used across brands, not a precision measurement of the product.

Actual size is the true physical length, width, and thickness of the filter. The actual dimensions may be smaller or larger than the nominal size—and sometimes a single filter has some dimensions rounded up and others rounded down.

For example, a filter with nominal size 16x20x5 might have actual dimensions of 15⅜" x 21⅞" x 5¼". In this case, the 16 was rounded up from 15⅜", the 20 was rounded down from 21⅞", and the 5 was rounded down from 5¼". This is more common than many people realize, especially with whole-house filters designed for specific cabinets.

As noted in the ASHRAE Filtration & Disinfection FAQ, clear definitions of nominal and actual dimensions have helped standardize training for HVAC technicians and reduced installation fit issues significantly.

In practice, you typically buy by nominal size because that is how filter racks, grilles, and cabinets are labeled. However, when you measure a filter or opening, you are working with actual dimensions, which you then compare to nominal sizes to find the appropriate match.

If you want an in-depth walk-through with examples from different brands, our dedicated nominal vs actual size guide can help you map common printed sizes to their approximate real-world dimensions.

The key is to remember that a "20x20x1" nominal filter from one manufacturer may differ slightly in actual dimensions from another. While most standard 1-inch filters with the same nominal size are generally compatible, it's always best to measure and verify, especially if you're switching brands or noticing fit issues.

How to Measure Air Filter Size for Your HVAC or Furnace

Measuring correctly ensures your replacement filter seals well without being forced into place. The basic process is straightforward, but a few details can prevent common mistakes.

The National Air Filtration Association's 2025 Best Practice Guidelines describe a simple three-step method—remove the filter, measure width, height, and depth to the nearest 1/8 inch, then compare to a chart—and retailers that embraced this approach saw a 12% drop in returned filters, according to the NAFA Best Practice Guidelines.

Step-by-Step Measuring of Your Filter or Opening

Start by confirming whether the filter lives behind a return grille or inside the furnace cabinet. Return filters are typically larger rectangles in ceilings or walls, while furnace filters slide into a narrow slot near the blower compartment.

After turning the system off and removing the filter, measure the length (long side), then the width (short side), then the thickness. Hold the tape square to the edge and read at eye level to avoid parallax errors.

If you have no filter in place, measure the metal frame or channel that holds it. Take measurements at two points along each side in case the opening is slightly out of square, and record the smallest consistent dimension for each side so the filter does not bind.

Once you have actual dimensions, compare them to common nominal sizes. While rounding up to the nearest whole inch often works, keep in mind that nominal sizes don't always follow a simple rounding rule—some actual dimensions may exceed the nominal size. If you're unsure, consult a detailed size chart or check the manufacturer's specifications for filters that match your measurements.

Converting Measurements to a Shopping Size

Suppose your old filter measures 19.5 x 24.5 x 0.75 inches. You would likely shop for filters marked "20x25x1," as this is a common nominal size that typically corresponds to those actual dimensions. However, always verify by checking the actual size listed on the product or packaging, since variations exist between manufacturers.

If your measured numbers are unusual—say 17.25 x 22.75—write them down exactly and compare them to a detailed furnace filter size chart to see whether there is a standard nominal size that matches closely or whether you are dealing with a less common size that might require a special order.

Common Air Filter Sizes Chart for Homes

Most residential HVAC systems use a relatively small set of recurring sizes, especially for one-inch-thick filters. Knowing the common sizes can speed up shopping and help you see where your measurements fall in relation to typical options.

The table below lists several of the most frequently used nominal sizes, typical actual dimensions, common thickness options, and where you are likely to find them installed. Keep in mind that actual sizes can vary between manufacturers, so these figures represent common ranges rather than universal standards.

Dimensions in this chart are approximate and represent common ranges; always rely on your own measurements and product labels for exact sizing. If your measurements do not align closely with a standard size, that is when you should start considering custom options or manufacturer-specific filters.

For a broader list that includes many more one-, two-, and four-inch options with their approximate actual dimensions and efficiency ratings, our complete list of 1, 2, and 4 inch air filter sizes with actual sizes and MERV ratings can be an excellent reference.

How to Choose the Right Air Filter Size and Type for Your Home

Once you know the nominal size that fits your system, you still need to choose the thickness, material, and MERV rating that match your home's needs and your equipment's capabilities.

This is where comfort, energy use, and long-term maintenance costs all come together, so it helps to think about size and type as a single decision rather than two separate ones.

Matching Filter Thickness to Your System

Avoid changing thickness without confirming your system is designed for it. A one-inch slot should generally use one-inch filters; trying to squeeze a thicker filter into a shallow slot can restrict airflow and potentially damage the blower or cause noise.

Media cabinets designed for four-inch filters provide more surface area, so they can capture more dust at the same airflow and often last longer between changes. However, you should only use a thicker filter if you have the appropriate cabinet or rack installed by the equipment or ductwork manufacturer.

Choosing a MERV Rating to Balance Filtration and Airflow

MERV (Minimum Efficiency Reporting Value) indicates how effectively a filter captures particles of different sizes. Higher MERV generally means finer filtration, but it can also increase resistance to airflow, especially if your system is older or the ductwork is undersized.

Filters in the MERV 6–10 range are very common in North America because they balance cost, filtration, and airflow, and filters in this band account for over 30% of the regional HVAC filter market, according to GM Insights HVAC filters market analysis.

If household members have allergies or respiratory sensitivities, you might look for a higher MERV rating within the range your equipment can handle. Reviewing our complete guide to air filter ratings can help you understand how different ratings perform against specific particle sizes like pollen, pet dander, and smoke.

Integrating Size, Type, and Replacement Frequency

A correctly sized, mid-efficiency pleated filter that is replaced on time usually outperforms a high-MERV filter that is too restrictive or left in place far beyond its intended life. Larger, thicker filters generally have more media area and can last longer between changes under the same conditions.

Seasonal load matters too. Research summarized in a Purolator Air Filters technical paper found that adjusting replacement schedules for pleated filters during high-pollen, high-usage seasons led to measurable reductions in household energy consumption and particulate levels.

To tie all of these decisions together—dimensions, thickness, and MERV—following a step-by-step furnace filter size and MERV selection guide can help you avoid combinations that might fit physically but are not ideal for your equipment.

If you are trying to decide how often to replace filters of different sizes and types in cooling mode, our air conditioner filter replacement guide can clarify how filter size and seasonal usage patterns affect change intervals.

At this point, you have enough information to identify a filter that fits physically, works with your HVAC system, and supports the level of air cleanliness you want for your household.

FAQs About Air Filter Sizes, Fit, and Replacement

Homeowners often encounter the same sizing and fit questions when they start taking filter maintenance seriously. Many discover filters that are just a bit loose in the slot, cannot find an exact printed size, or are unsure what to do when different returns use different sizes.

A slightly undersized filter may still seem to "stay put," and in some cases this can work fine—particularly in return grilles where the blower's suction pulls the filter against the inset, creating a reasonable seal as long as the filter fully covers the opening. However, in ceiling-mounted returns, a loose filter may rattle or make noise when the blower cycles on and off. Wall returns are generally less affected since gravity helps keep the filter seated.

On the other hand, a filter that has to be forced or bowed into place can restrict airflow, leading to noise and potential equipment strain.

When your measurements do not match anything on the shelf, it usually means your opening is either non-standard or originally designed for a specific OEM filter. In those cases, recording precise width, height, and depth and comparing them to a comprehensive size chart can reveal whether a nearby standard size will work or whether a custom-sized filter is the best long-term solution.

Different rooms using different sizes is normal; builders often choose return sizes based on room loads and duct layout. The important thing is to track each size separately, label the filters' locations if you stock more than one size at home, and keep a simple schedule for checking and replacing them so none are forgotten.

Frequently Asked Questions

How can I tell if my air filter is the wrong size after it's installed?

With the blower running, listen for whistling or rattling around the filter slot, which can indicate gaps or a filter that's too loose. Visually check that the frame sits flat against the rack or grille with no bowing, bending, or visible gaps along the edges. Ceiling returns are particularly prone to noise if the filter is loose, since gravity can cause movement when the blower cycles.

Is it better to buy air filters in bulk or one at a time?

Buying in bulk is usually more cost-effective and makes it easier to stay on a consistent replacement schedule. Just be sure you're confident in the size and type before stocking up, and store filters flat in a dry area to prevent warping or damage.

Do homes with pets or smokers need different filter sizes?

Pet hair and smoke don't change the physical size you need, but they do increase how quickly filters load up with debris. In these homes, keep the same size but consider slightly higher-efficiency filters (within your system's limits) and shorten the time between replacements.

Can I use washable or reusable filters instead of disposable ones?

You can, as long as the reusable filter matches your nominal size and thickness and doesn't exceed your system's airflow limitations. Follow the manufacturer's cleaning instructions carefully and let the filter dry fully before reinstalling to avoid mold growth.

What should renters do if they're unsure which filter size their unit needs?

Start by checking any existing filter for printed size information and take a clear photo of the label and the filter slot. If the size still isn't obvious, contact your landlord or property manager and ask whether they have a preferred size, brand, or replacement schedule for that system.

How does using the correct filter size affect my energy bills?

A properly sized filter allows your blower to move air with less resistance, so the system doesn't have to run as long or as hard to heat or cool your home. Over time, that smoother airflow can lower energy use and reduce wear on motors and coils, which helps avoid expensive repairs.

What's the best way to label and organize multiple filter sizes in my home?

Use a permanent marker to write the location and installation date on the filter frame (for example, "Hallway return – 1st floor – 5/10/26"). Keep a simple checklist or note on your phone that lists each return or cabinet with its size and target replacement interval so you can change them all systematically.

Can a slightly smaller filter work in a return grille?

In many cases, yes—as long as the filter fully covers the opening inset. When the blower runs, the suction pulls the filter against the inset, helping to create a seal. However, ceiling-mounted returns may experience rattling or noise with loose filters when the blower cycles on and off. Wall returns are generally less prone to this issue. If you notice noise, consider whether a better-fitting size would solve the problem.

Are standard 1-inch filters interchangeable between brands?

Generally, yes—most 1-inch filters with the same nominal size (like 20x20x1) will fit the same slot regardless of brand. However, slight variations in actual dimensions can exist between manufacturers, so it's always best to measure and verify, especially if you're switching brands or experiencing fit issues.

Are whole-house filters interchangeable between brands if the nominal size matches?

Often, no. For thicker whole-house filters (4-6 inches), the same nominal size does not always guarantee compatibility between brands. These filters are frequently designed for specific filter cabinets, and actual dimensions can vary significantly by manufacturer. For example, three different 16x25x5 filters from Ultravation, Honeywell, and Goodman all have different actual dimensions—and one even exceeds the nominal size in width. Always match whole-house filters by model number or exact actual measurements when possible.

Measure Once, Get Air Filter Sizes Right Every Time

Correct Air Filter Sizes are the foundation of effective filtration, efficient HVAC operation, and predictable replacement routines. When you understand nominal versus actual dimensions, follow a repeatable measuring method, and choose a compatible filter type and thickness, you eliminate guesswork from a task that directly affects comfort and equipment life.
