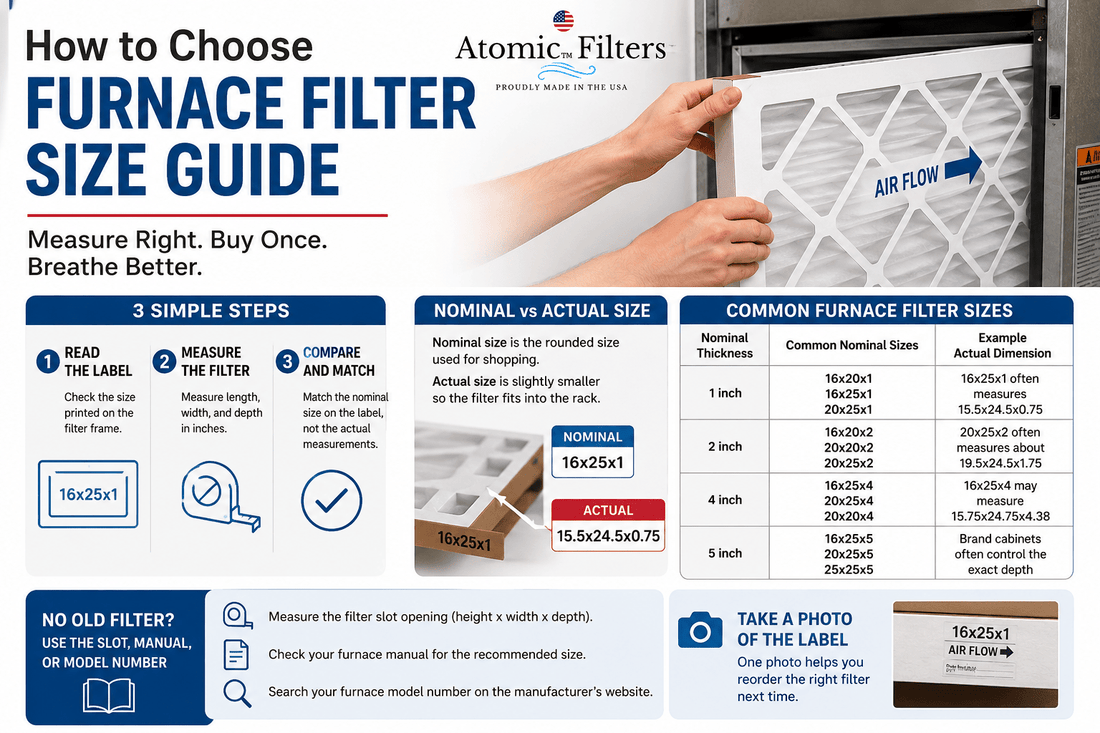

How to Choose Furnace Filter Size Guide
The wrong furnace filter size usually looks close enough until your blower starts straining or dust slips around the frame.
By the end, you’ll know how to read the old label and measure the slot when the filter is missing. You’ll also know how nominal sizes differ from actual measurements, so you can buy once and reorder with confidence.
Prerequisites Before You Pull the Filter
Turn your heating or cooling system off before you open the filter compartment. This keeps loose dust from blowing into the ductwork and helps you avoid touching moving parts.
Use a simple setup before you start:
A tape measure that shows fractions of an inch
A flashlight for dark return grilles or furnace cabinets
A phone to photograph the label and filter direction arrow
A notepad if you manage more than one filter location
How to Measure Furnace Filter Size in 3 Simple Steps
Most filters follow a length x width x depth format. The first two numbers describe the face of the filter, while the last number describes the thickness that slides into the rack.
Read the old filter label first. Pull the filter out and look along the cardboard frame. Manufacturers usually print a size such as 16x25x1 or 20x25x4, plus an airflow arrow that shows installation direction.
Measure the actual filter. Use your tape measure across the longest side, then the shorter side, then the filter depth. Write the numbers in inches as actual measurements, not rounded numbers.
Compare label size to measured size. If the label says 16x25x1 and your tape shows about 15.5x24.5x0.75, you likely have the correct nominal size. Do not buy based on the measured number unless the seller asks for actual dimensions.
Photograph the old label before you throw the filter away. That one picture helps you reorder later and prevents the classic mistake of remembering “about 16 by 25” but forgetting the depth.
Nominal vs Actual Furnace Filter Size: What the Label Means
Furnace Filter Dimensions Explained Without Guesswork
A labeled furnace filter size gives the nominal size, which means the rounded size used for shopping. Your ruler gives the actual size, which usually runs slightly smaller so the filter can slide into the rack.
For example, a 16x25x1 filter may measure 15.5x24.5x0.75. A deeper 16x25x4 media filter may measure closer to 15.75x24.75x4.38, which explains why some people get stuck comparing 16x25x4 and 16x25x4.5 listings.
For a deeper measuring workflow, the Atomic Filters guide to measuring furnace filter dimensions that fit shows how to handle those real-world size differences without guessing.
Consumer Reports buying guidance also treats locate → measure → match MERV before buying as a practical homeowner sequence.
Furnace Filter Size Chart for Common Replacements
Use this furnace filter size chart as a starting point, not as a substitute for measuring. Standard furnace filter sizes cover many homes and small business systems, but actual dimensions vary by brand.
Nominal Thickness |
Common Nominal Sizes |
Example Actual Dimension |
|---|---|---|
1 inch |
16x20x1 |
16x25x1 often measures 15.5x24.5x0.75 |
2 inch |
16x20x2 |
20x25x2 often measures about 19.5x24.5x1.75 |
4 inch |
16x25x4 |
16x25x4 may measure 15.75x24.75x4.38 |
5 inch |
16x25x5 |
Brand cabinets often control the exact depth |
Once your nominal size matches your notes, the most popular furnace filter sizes from Atomic Filters make it easier to compare common replacements by size instead of searching from scratch.
No Old Filter? Use the Slot, Manual, or Model Number
What Size Furnace Filter Do I Need Without the Old One?
If you do not have the old filter, measure the filter slot opening instead. Measure the inside opening where the filter slides in, then look for a nominal size slightly smaller than that opening.
Check these places before ordering:
The furnace or air handler manual
A sticker inside the filter cabinet door
The return grille frame in a wall or ceiling
The equipment model number
If you own a Carrier system, a Carrier furnace filter size by model number lookup can help narrow the replacement before you measure the rack.
When a Custom Size Makes Sense
Custom sizing makes sense when a standard filter rattles, leaves a visible gap, or refuses to slide in without bending. Do not tape gaps as a long-term fix because air will still find the easiest path around the filter.
Consider a custom replacement when you see one of these situations:
An older furnace cabinet with an odd rack size
A return grille that accepts a non-standard depth
A media cabinet that requires a brand-specific filter
A slot that measures far outside common nominal sizes
Fit, Airflow, and MERV: Avoid a Costly Mismatch
A correct filter should slide in snugly without crushing the frame. If it rattles, air bypasses the filter; if you force it, the system may lose airflow.
Higher MERV ratings capture smaller particles, but more filtration may add resistance. Skip the highest MERV rating if your manual limits filter options or your blower already struggles to move air.
EPA guidance frames proper filter selection as one part of indoor air quality, paired with source control and ventilation. ASHRAE also advises that filter thickness and MERV align with blower capacity.
If you want a size and filtration cross-check, the Atomic Filters guide to choosing the right furnace filter size, type, and MERV keeps those decisions together instead of treating MERV as an afterthought.
Filter Type |
Typical Replacement Timing |
Replace Sooner When |
|---|---|---|
1-inch, lower to mid MERV |
Every 1 to 3 months |
The filter looks gray or airflow drops |
1-inch, higher MERV |
Often closer to monthly |
Pets or renovation dust load it quickly |
4-inch to 5-inch media filter |
Often 6 to 12 months |
Your system runs heavily through a season |
Verify Your Furnace Filter Size Before Ordering Online
Verify Your Furnace Filter Size Before Ordering Online
Before you click buy, compare three things: the nominal size on the listing, the actual dimensions in the product details, and the depth your rack accepts. This final check catches most wrong-size purchases.
Atomic Filters carries replacement filters for common HVAC systems, including cost-effective options that fit many major equipment brands. Save your confirmed size in your phone as “furnace filter,” then include the MERV rating and replacement date.
Frequently Asked Questions
Q: Can I use two thinner filters instead of one thicker filter?
A: It is usually not recommended because stacking filters can restrict airflow and may not seal properly in the rack. Use the thickness your filter housing is designed for, if you want higher capacity consider a deeper media cabinet rather than doubling up.
Q: What should I do if my filter size is uncommon and I cannot find it online?
A: Look for suppliers that offer custom-cut filters or brand-specific replacements for media cabinets and return grilles. Before ordering, confirm whether the seller wants nominal size or exact measurements to avoid a near-fit that leaks air.
Q: Is it okay to run my system briefly without a filter while I wait for a replacement?
A: It is better to avoid running the system without a filter because dust can accumulate on the blower and coil, reducing efficiency and potentially creating odors. If you must run it, keep runtime minimal and replace the filter as soon as possible.
Q: How can I tell if my filter is installed backwards?
A: Check the airflow arrow on the frame and make sure it points toward the furnace or air handler, not toward the return grille. A backwards filter can reduce performance and increase the chance of the frame bowing or leaking around the edges.
Q: What are the signs that my filter rack or door is causing air bypass even with the right filter?
A: Whistling, visible dust streaks near the slot, or a filter that shifts when the system starts can indicate a poor seal. A technician can add proper gasketing, adjust the door latch, or correct a warped rack so air goes through the filter instead of around it.
Q: Do smart thermostats or newer HVAC systems change how I should select a filter?
A: They do not change the physical size you need, but they can change how quickly filters load because of longer run times or fan circulation settings. If you run the fan more often for comfort or air mixing, plan for more frequent filter checks.
Q: What is the best way to manage filter sizes and replacement schedules for multiple locations?
A: Create a simple list by address or unit, including filter size, MERV preference, quantity needed, and last replacement date. Keeping that information in a shared note or maintenance log helps prevent mix-ups and makes bulk reordering easier.
Reorder With Confidence Next Time
The right furnace filter size gives your forced-air system a clean path for airflow while helping the filter do its job. You should notice better dust control and steadier system performance, and your next reorder should take minutes instead of another round of measuring.
Use this how to choose furnace filter size guide each time you move into a new home, service a small business unit, or inherit a system with no filter label. When you know your exact size, discover cost-effective furnace filters from Atomic Filters and order the replacement with more confidence.
