How to Measure Furnace Filter Dimensions That Fit

That filter you pulled out of your furnace probably has faded ink, a bent corner, and numbers you can barely read. Knowing how to measure furnace filter dimensions correctly saves you from ordering the wrong size, wasting money on returns, and running your HVAC system unprotected while you wait for the right one to arrive.

This guide walks you through the exact steps to measure a furnace filter, explains the difference between nominal and actual sizing, and gives you a quick-reference chart so you can confidently buy a replacement that fits. Even if your old filter is missing entirely, you'll know what to do.

What You Need Before You Start

Gather these items before heading to your furnace or air handler. The whole process takes about five minutes.

• A tape measure (rigid metal tape is more accurate than fabric)

• A flashlight or phone light

• A pen and notepad (or your phone's notes app)

• Access to your furnace, air handler, or return air grille

If you still have the old filter, keep it nearby. The label on its frame is your fastest shortcut, but you'll want to verify those numbers with a tape measure anyway.

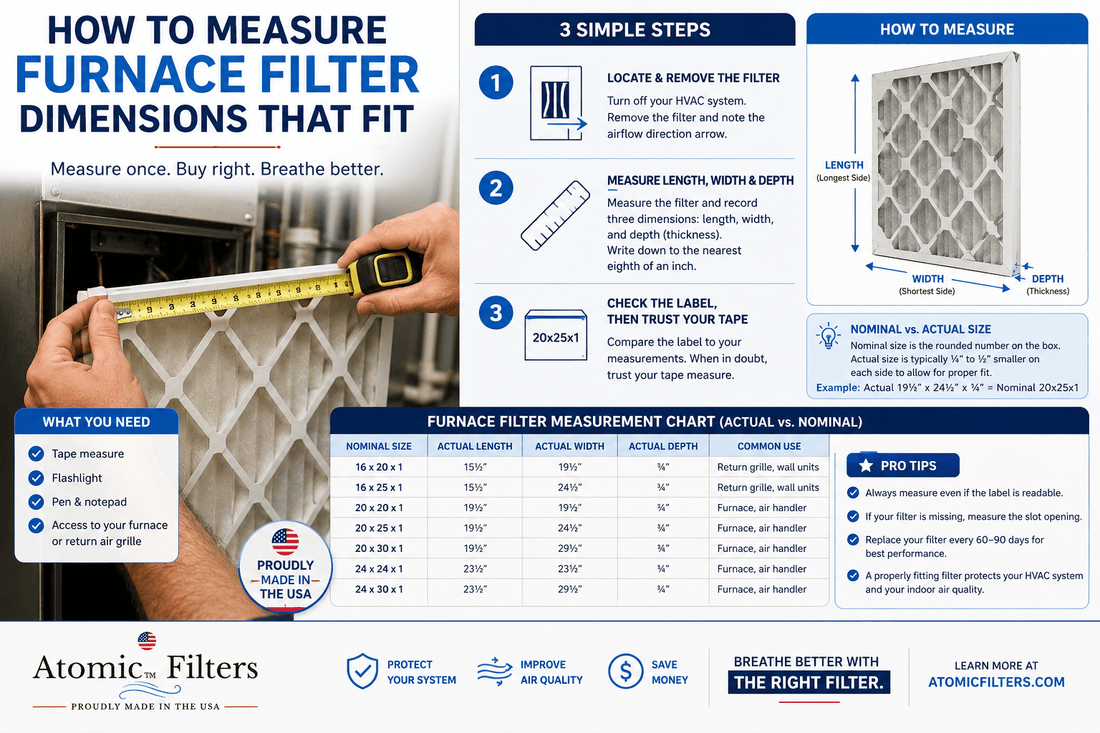

How to Measure Furnace Filter Size in 3 Steps

Step 1: Locate and Remove the Existing Filter

Your filter sits in one of three places: a slot on the side or bottom of your furnace, inside the blower compartment, or behind a return air grille on a wall or ceiling. Turn off your HVAC system before removing anything. Slide the filter out gently, noting which direction the airflow arrow points so you can reinstall the replacement correctly.

Step 2: Measure Length, Width, and Depth

Lay the filter on a flat surface. Use your tape measure to record three dimensions in this order: length (the longest side), width (the shorter side), and depth (the thickness from front to back). Write each measurement down to the nearest eighth of an inch.

A filter you measure at 19½" × 24½" × ¾" is actually a 20×25×1 in nominal sizing. We'll explain that gap in the next section, but for now, just record the raw numbers exactly as you see them.

Step 3: Check the Label, Then Trust Your Tape

Most filters print a nominal size on the cardboard frame. If you can read it, great. Compare it against your tape-measure readings to confirm it matches. If the label says 16×25×1 but your tape says 15½" × 24½" × ¾", the label is correct. Those differences are expected.

However, if the label says one size and your tape shows something drastically different (more than ½" off on any dimension), the previous owner may have forced the wrong filter in. Trust your measurements over an old label in that situation.

Nominal vs. Actual Furnace Filter Size: What the Numbers Really Mean

This is where most of the confusion lives. Nominal size is the rounded, marketing-friendly number printed on packaging. Actual size is what you'd get if you measured the filter with calipers. Filters need to be slightly smaller than the slot so they slide in and out without jamming.

Typically, actual dimensions run about ¼" to ½" smaller than nominal on each side. So a filter labeled 20×20×1 actually measures closer to 19½" × 19½" × ¾". This is standard across the industry. Understanding the relationship between nominal and actual air filter sizes prevents a lot of unnecessary returns.

The EPA's consumer guide reinforces this point: correct physical size is just as important as filter efficiency when selecting a replacement. A high-MERV filter that doesn't fit your slot won't do you any good.

Furnace Filter Measurement Chart for Common Sizes

This chart covers the sizes you're most likely to encounter in residential systems. Bookmark it for your next filter change.

If your measurements land close to one of these, you've found your size. The most popular furnace filter sizes account for the vast majority of residential systems, so odds are good you'll match one from this list.

How to Measure Air Filter Size Without the Old Filter

No filter to pull out? That's more common than you'd think. Maybe the previous homeowner never replaced it, or maybe it disintegrated. Here's what to do.

Measure the filter slot opening itself. Use your tape measure on the height and width of the opening where the filter slides in. Then measure the depth of the track or channel. Round each measurement up to the nearest whole inch for the nominal size. A slot that measures 19⅝" × 24⅝" deep with a 1" track means you need a 20×25×1.

Your second option is checking the equipment label. Most furnaces and air handlers have a sticker on the inside of the access panel or on the cabinet exterior that lists the recommended filter size. You can also look up your filter size by HVAC model number if the sticker is missing or illegible.

A third approach: check your owner's manual. Even if you don't have the physical copy, most manufacturers post manuals online as PDFs. Search your furnace model number plus "owner's manual" and look for the filter specifications section.

Common Mistakes That Lead to Wrong-Size Orders

Mixing Up Length and Width

A 16×25 filter is not the same as a 25×16. While the filter itself might physically fit either way, some filter slots are designed with a specific orientation. Always list the first number as the dimension going across the opening and the second as the dimension going up and down. When in doubt, check the HVAC filter sizing and buying guide for clarity on dimension order.

Ignoring Filter Depth

This is the big one. A 1-inch filter and a 4-inch filter can share the same length and width but require completely different housings. Jamming a 4-inch media filter into a 1-inch slot won't work, and sliding a 1-inch filter into a media cabinet leaves massive air gaps that let unfiltered air bypass the filter entirely. Industry standards from ASHRAE confirm that even high-performance filters fail if dimensions don't match the housing and the seal isn't verified.

Rounding in the Wrong Direction

Always round up to the nearest whole inch for nominal size. If your measurement is 19⅝", you need a 20" nominal, not a 19". Rounding down gives you a filter that's too small, which creates gaps around the edges.

One exception: if your measurement falls almost exactly on a whole number (say, 19⅞"), double-check whether you might actually need a 20" nominal by test-fitting. That ⅛" can be the difference between a snug fit and a filter that's slightly too tight.

What to Do When Your Measured Size Doesn't Match a Standard

Occasionally your tape measure gives you something weird, like 19" × 27" × 1". That's not a standard nominal size, and forcing the closest standard filter in creates problems.

First, re-measure. Odd dimensions often result from measuring at an angle or including the frame lip of the slot. If the number holds up, you likely have an older or custom-built system. In that case, custom-cut filters are the answer. Forcing an undersized filter into the slot lets dirty air bypass the media, while an oversized filter bends and buckles, restricting airflow and straining your blower motor.

HIRI market research supports taking this seriously: disciplined measuring and documentation of filter dimensions cuts return rates and saves money for homeowners.

Quick Fit Check After You Install

Once your new filter arrives, run through this quick verification before closing things up. Slide the filter in and confirm it moves smoothly without bending. Check all four edges for visible gaps between the filter frame and the slot walls. Make sure the airflow arrow points toward the blower (away from the return duct). Close the access panel or grille and confirm it latches properly without pressing against the filter.

If any of those checks fail, you've likely got the wrong size. Don't run your system with a poorly fitting filter, as you're just pushing dust and allergens through the gaps.

Frequently Asked Questions

How do I choose the right MERV rating once I know my filter size?

Start with your HVAC manufacturer’s recommendation, then balance filtration needs with airflow. Homes with allergies, pets, or high dust may benefit from a higher MERV, but extremely restrictive filters can reduce airflow in some systems. When in doubt, ask an HVAC technician to confirm what your blower can handle.

How often should I replace my furnace filter?

Replacement frequency depends on filter thickness, indoor air quality, and usage patterns. Many households replace 1-inch filters more frequently than thicker media filters, especially during heavy heating or cooling seasons. Check the filter monthly at first, then set a schedule based on how quickly it loads with dust.

What happens if I use a filter that is slightly too small but still “fits” in the slot?

Even a small gap can allow air to bypass the filter, which reduces filtration and can increase dust buildup inside the system. Bypass air can also make your filter seem cleaner than it should, leading to longer use than is healthy for the equipment. A properly sized filter should seal consistently around the frame.

Can I use a washable or reusable filter instead of disposable filters?

Washable filters can be convenient, but performance varies widely and they must be cleaned thoroughly and fully dried to avoid airflow issues and potential microbial growth. Some reusable designs provide lower filtration than quality pleated disposables. Confirm compatibility with your HVAC system before switching.

Does a thicker filter improve air quality compared to a 1-inch filter?

Often, yes, because thicker filters typically have more surface area, which can capture more particles while maintaining airflow. However, air quality gains depend on the filter media and rating, not thickness alone. Your system must have a cabinet designed for thicker filters to get the benefits.

How can I tell if my filter is restricting airflow too much?

Common signs include weaker airflow at vents, longer run times, unusual whistling near the return, or rooms that are harder to heat or cool. If symptoms appear soon after installing a new filter, try a lower-resistance option in the same size. Persistent issues should be evaluated by a technician to rule out duct or blower problems.

Is it worth buying filters in bulk, and how should I store them?

Buying in multi-packs can lower cost per filter and helps you stay consistent with replacements. Store filters flat in a clean, dry area, and keep them in their packaging to prevent moisture, odors, or damage to the pleats. Label a reminder with the intended install month so older stock gets used first.

Your Measurements, Your Savings

Now that you know how to measure furnace filter dimensions accurately, ordering the right replacement is straightforward. Record your nominal size (length × width × depth), and keep those numbers in your phone for future orders.
