Which Way Does an Air Filter Go? Arrow Direction for Furnace & AC Filters

The one rule that always works

Changing an air filter is simple until you're standing in front of the slot wondering which way the thing faces. The good news is there is exactly one rule, and it never changes regardless of brand, size, or where the filter lives in your system:

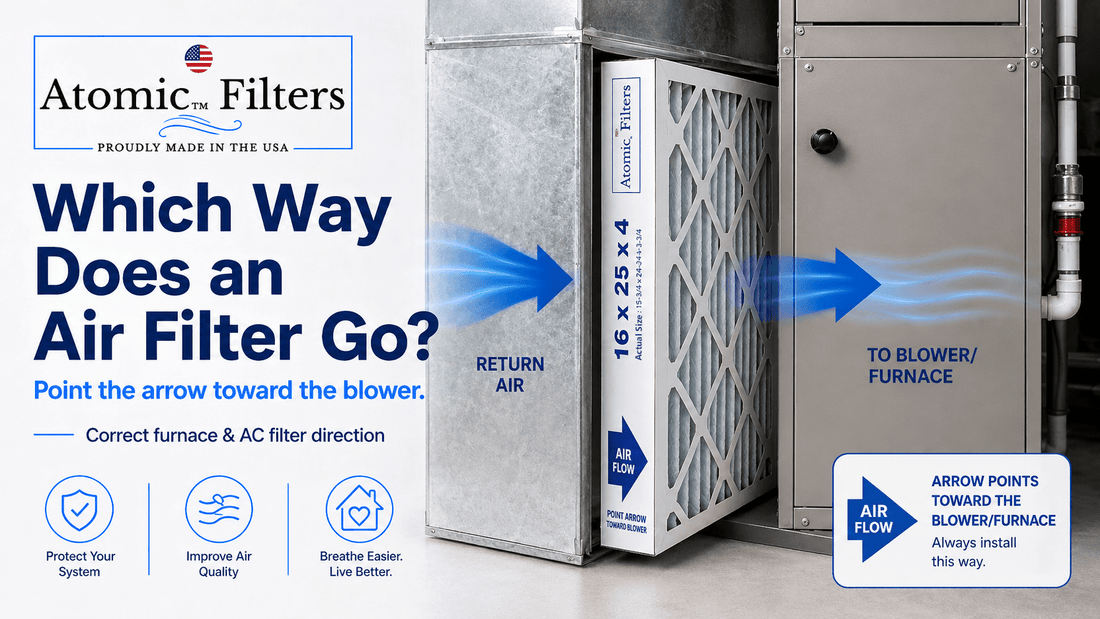

Point the arrow in the direction the air is moving — toward the blower.

Forced-air systems pull air out of your rooms through the return grilles, drag it through the filter, and push it into the furnace or air handler, where the blower fan sends it back out through the supply vents. The filter sits in the middle of that loop, on the return (suction) side. The arrow is just a map of that airflow: it should always aim at the equipment doing the pulling.

There's a reason the filter is positioned before the equipment rather than after it. The original job of an air filter wasn't your allergies — it was protecting the machine. The blower motor, the heat exchanger, and especially the evaporator coil are expensive and easy to foul with dust. Putting the filter on the intake side means the air gets cleaned before it ever reaches those parts. Cleaner indoor air is a bonus that came later. Keep that purpose in mind and the direction becomes obvious: you want the filter catching dust on its way to the equipment, so the arrow points toward the equipment.

How to tell which way the air flows in your setup

If you're not sure which direction counts as "toward the blower," you only need to find one thing: the return. Air enters the filter from the return side and exits toward the equipment. Three quick checks:

• Find the return duct. It's usually the larger duct, and it's the one connected to the wall or ceiling grilles that pull room air in. The filter sits where that return meets the equipment. Air travels away from the return, so the arrow points away from the return and toward the unit.
• Locate the blower compartment. The blower is the squirrel-cage fan inside the furnace or air handler. Whatever side of the filter is closest to that fan is the side the arrow should point toward.
• Read the dust on the old filter. The dirty, gray side is the side that faced the incoming room air — that's the return side, the back of the arrow. The cleaner side faced the equipment. Match the new filter the same way.

Not sure where your filter even lives? We cover every common spot — wall grille, ceiling grille, the slot at the unit, and the in-duct cabinet — in Where Is the Furnace Filter Located? Upflow vs Downflow. Find the filter first, then come back here for the direction.





Arrow direction by furnace type

The rule is always "toward the blower," but what that looks like depends on how your furnace is oriented. Here's how the arrow lands in each of the three common configurations.

Furnace type	Where it usually is	Arrow points…
Upflow (blower on bottom, warm air exits top)	Basements & closets	Up, toward the top of the unit (filter usually in the bottom door)
Downflow (blower on top, warm air exits bottom)	Attics & upstairs closets	Down, toward the bottom of the unit (filter often in the top)
Horizontal (air handler lies on its side)	Crawlspaces & attics	Sideways, toward the blower end of the unit (away from the return-side rack)

No matter how the cabinet is turned, the logic is identical: the arrow chases the air into the blower. If you can see which way air leaves the filter and enters the equipment, you have your answer.

Filter in a wall or ceiling return grille

Plenty of homes don't keep the filter at the furnace at all — it sits behind a big return grille on a wall or ceiling, often the only spot it lives. The rule doesn't change, but the picture flips, which trips people up.

Here, the room is the "return side" and the ductwork behind the grille leads to the equipment. So the arrow should point into the wall or up into the ceiling — away from you, away from the room, toward the duct. If you're holding the filter and the arrow points back out at your face, it's backwards.

One more note for grille installs: many homes have several return grilles, each with its own filter, and the sizes aren't always the same. Walk the house and check every large grille so you don't leave one pulling unfiltered air straight into the system.

What if there's no arrow on the filter?

Most disposable filters print the arrow on the cardboard edge, sometimes faintly in a corner — check all four sides before you give up. If there truly isn't one, the filter itself tells you which way it goes:

• The wire backing faces the equipment. Many pleated filters have a wire mesh or rigid grid on one face. That reinforcement is there to keep the filter from collapsing under suction, so it belongs on the downstream (blower) side. Wire toward the furnace, away from the return.
• The more open side faces the incoming air. The looser, fuzzier-looking face should greet the dirty return air; the denser side faces the equipment.
• Pleat direction doesn't matter. Whether the pleats look like they run up-down or left-right has no effect on performance. Only the airflow direction matters.

If you ever installed one backwards, don't panic — a single cycle the wrong way won't wreck anything. Just flip it the next time you're at the unit.

Why direction actually matters

Filters are built to work in one direction. The media is layered — a more open entry face that catches larger debris, grading to a denser exit face that traps fine particles — and that structure only performs as rated when air moves through it the intended way. Reverse it and a few things go wrong:

• Restricted airflow. Air hits the dense side first and meets more resistance, so the blower works harder every cycle.
• Lost filtration. You don't get the full MERV-rated capture the filter was designed to deliver.
• Filter bowing & bypass. Without the wire backing on the suction side, a filter can flex, buckle, and open gaps where unfiltered air slips around it.
• System strain over time. Higher static pressure means more wear on the motor and, eventually, higher energy use. The U.S. Department of Energy notes a dirty or poorly installed filter can raise a system's energy use meaningfully, so this isn't nothing — it just isn't an overnight failure.

Installing a filter the right way, step by step

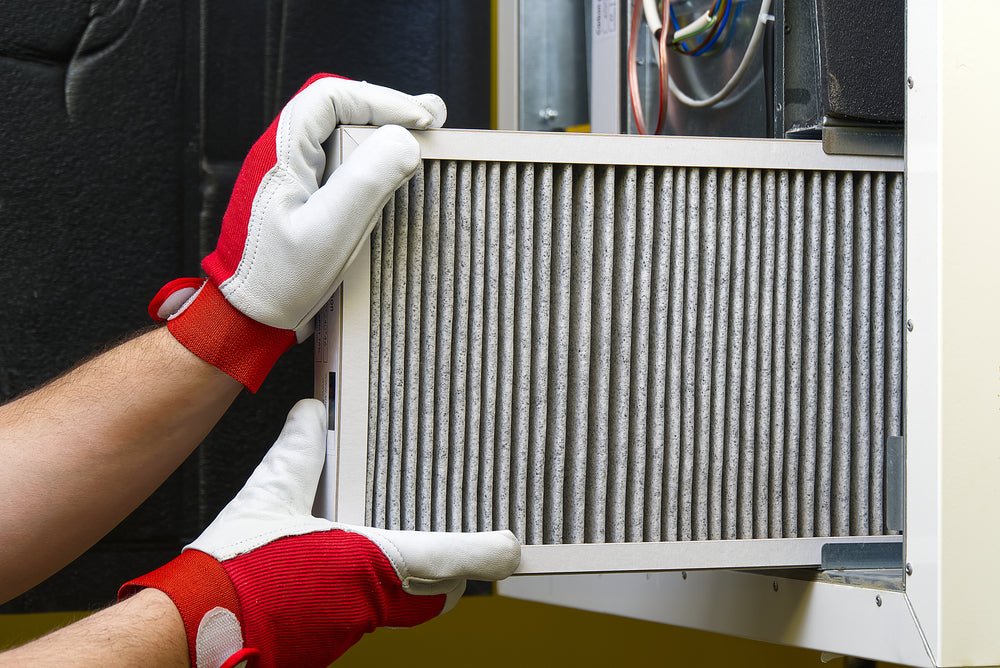

1. Turn the system off at the thermostat (and the breaker if it's easy) so it isn't pulling air while the slot is open.
2. Slide the old filter out and note which way its arrow pointed before you lose the reference. Snap a quick photo if you want a cheat sheet for next time.
3. Confirm the size. Match the nominal size printed on the frame exactly — a filter even half an inch too big will bow and leak. If you're unsure how to read or measure it, see our guide to measuring furnace filter dimensions.
4. Find the arrow on the new filter and aim it toward the furnace/blower (or into the wall/ceiling for a grille install).
5. Seat it snugly. It should slide in without forcing and sit flat with no gaps around the edges.
6. Close up and restore power. Turn the system back on and hold a hand near a supply vent — you should feel steady airflow within a minute or two.

Getting the right replacement filter

Direction only does its job if the filter fits and matches your system. Match the nominal size (length × width × thickness, e.g. 16x25x1) exactly, and pick a MERV rating your system can handle — MERV 8 for everyday dust, MERV 11 for allergens and pet dander, MERV 13 for finer particles if your blower supports it. And never run the system with no filter at all; that sends dust straight onto the coil and blower the filter exists to protect.

When it's time to restock, Atomic Filters makes USA-made replacements and OEM-compatible filters for the major brands, typically 30–50% below OEM pricing for the same size and MERV spec. Match your size, pick your MERV, and you're set for the next change.

Frequently asked questions

Which way does the arrow point on an air filter?

Toward the furnace, air handler, or blower — the direction air flows through the system. Air goes from your rooms, through the return, through the filter, and into the equipment, and the arrow follows that path. Think "arrow points at the fan."

Which way does an AC filter go?

The same way as a furnace filter — they're the same part. The arrow points toward the air handler or blower, away from the return. In a central system the filter sits on the return side, whether that's at the unit or behind a return grille.

Which way does the arrow go on a Carrier (or any brand) furnace filter?

The same way as every other brand — toward the blower. Carrier, Trane, Lennox, and generic filters all follow the identical rule: the arrow points in the direction of airflow, into the equipment. The name on the frame doesn't change the direction, so you don't need brand-specific instructions. Any filter cut to your nominal size installs the same way. (We make USA-made replacements compatible with the major HVAC brands if you're due for a fresh one.)

Does the arrow point up or down?

It depends on the setup. In an upflow furnace the arrow usually points up toward the unit; in a downflow furnace it points down; in a ceiling return grille it points up into the ceiling. The constant is that it always points toward the equipment and away from the return air.

What if my filter doesn't have an arrow?

Use the filter itself: the wire-backed (reinforced) side faces the furnace, and the more open side faces the incoming return air. Pleat direction doesn't matter — only airflow direction does.

Is it bad if I installed the filter backwards?

Once won't damage your system, but it restricts airflow, reduces filtration, and can cause the filter to bow and let unfiltered air bypass it. Flip it the next time you're at the unit so the arrow points toward the blower.

Do the pleats face a certain direction?

No. The orientation of the pleats has no effect on performance. Only the airflow arrow — pointing toward the equipment — determines correct installation.

Which way does the filter go in a wall or ceiling return?

The arrow points into the wall or ceiling, toward the ductwork and equipment, and away from the room. If the arrow is aimed back out at you, it's installed backwards.
