How to Replace a pgapxcar2025-a02 20x25x3 Air Filter

Ordering the right PGAPXCAR2025-A02 filter cartridge is harder than it looks when multiple 20x25x3 filters share similar names and sizes. Choosing incorrectly can restrict airflow, reduce filtration performance, and force you to deal with returns or an extra trip to the supply house.

This guide walks you through exactly what this 20x25x3 air purifier cartridge is, how it works in your system, how to confirm compatibility, and how to replace it safely. You will also see the key specifications, understand the benefits of MERV 13 media, and learn how to use a 2-pack to stay ahead of your maintenance schedule.

Outcome: By the end of this guide, you will be able to identify whether the PGAPXCAR2025-A02 is the correct filter for your cabinet, choose a compatible 20x25x3 replacement, and install it confidently in about 10–15 minutes.

Prerequisites: Before you start, you should be comfortable accessing your furnace or air handler, opening the air purifier cabinet, and turning power to the system off and on at the thermostat or breaker. Having basic hand tools on hand makes the job smoother.

• Ability to reach your indoor HVAC unit and air purifier cabinet safely
• Access to your existing filter or cabinet label for part numbers
• Basic tools (often just a screwdriver) to open the cabinet door if needed
• A new 20x25x3 filter cartridge, ideally as part of a 2-pack so you have a spare

1. Identify your existing filter and cabinet, including part numbers and nominal size (20x25x3).
2. Confirm that your system uses the PGAPXCAR2025 family and not a different series or size.
3. Turn off power, remove the old cartridge, install the new one with airflow arrows aligned, and close the cabinet securely.
4. Record the installation date, store the spare from your 2-pack in a dry place, and set a reminder for your next replacement.

Understanding the PGAPXCAR2025-A02 Air Filter and How It Works

The PGAPXCAR2025-A02 is a MERV 13 high-efficiency media cartridge designed for the Carrier Infinity Air Purifier, Bryant Evolution Air Purifier, and Payne equivalent models (all use cabinet model DGAPAXX2025). Instead of a thin 1-inch furnace filter, this cartridge uses a deep-pleated media pack inside a rigid frame to capture far more dust and fine particles.

Air from your home returns through ducts into the purifier cabinet, where it is forced through the pleated media before reaching the blower and coil. As the air travels through the dense filter material, particles such as dust, pollen, pet dander, and smoke are trapped, while cleaned air continues into the rest of the HVAC system.

This design keeps airborne contaminants out of your living spaces and off sensitive HVAC components. Because the media surface area is so large, it can maintain strong filtration with a relatively low pressure drop over a much longer period compared with standard flat filters.

Key Components Inside the PGAPXCAR2025-A02 Cartridge

Inside the PGAPXCAR2025-A02, the most important element is the pleated filter media. Dozens of deep pleats create a large surface area in a compact 20x25x3 form factor, allowing the cartridge to trap large amounts of debris before airflow is significantly restricted.

The media is held in a sturdy, moisture-resistant frame that keeps the pleats evenly spaced and rigid during operation. Many cabinets rely on a gasket or tight fit at the ends of the cartridge so that air cannot bypass around the filter, which is why using the exact style and size your cabinet was designed for is critical.

Captures & Kills® Technology: How It Works

The Carrier Infinity and Bryant Evolution Air Purifiers featuring the PGAPXCAR2025 cartridge use a patented three-stage process that not only captures particles but inactivates them:

1. Charge: A precision-point ionization array creates a "cloud" of electrically charged ions that attach to airborne dust, pollen, viruses, germs, and other particles as they pass through.
2. Capture: The ionized particles are pulled toward the oppositely charged, pleated filter and captured at an extremely high rate—similar to how a magnet attracts metal shavings.
3. Kill: Captured airborne microbes remain on the pleated filter instead of recirculating back into the home and are subjected to an intense electric field that inactivates them.

Third-party testing has demonstrated 99% inactivation of select captured viruses and germs, including coronavirus, common cold surrogate, bacteria that causes strep throat, and human influenza.

Important: The PGAPXCAR2025 cartridge includes metallic foil tabs that are required to activate the ionization array in your Germicidal Air Purifier cabinet. Standard furnace filters will not seal correctly and cannot activate this feature, which is why you must use either genuine PGAPXCAR2025/AGAPXCAR2025 filters or a compatible filter specifically made for these cabinets.

On the outer edge of the cartridge, an airflow arrow indicates which way the air should pass through the filter. Installing the cartridge with this arrow pointing toward the furnace or air handler ensures the pleats and support structure are oriented as engineered, providing consistent performance over the filter's lifespan.

At the system level, your air purifier cabinet, blower, and ductwork are all sized around this cartridge. That is why choosing the correct PGAPXCAR2025 family filter is not just about fitting it in the slot, but about preserving the airflow and filtration balance your system was designed to deliver.

PGAPXCAR2025-A02 Compatibility Guide: Systems, Part Numbers & Cross-References

Most ordering mistakes happen in this step, because several 20x25x3 cartridges and cabinets look similar but are not interchangeable. The PGAPXCAR2025-A02 is built for specific whole-house air purifier cabinets sold under three brand names:

• Carrier Infinity Air Purifier (Model DGAPAXX2025)
• Bryant Evolution Air Purifier (Model DGAPAXX2025)
• Payne Air Purifier (equivalent model)

All three use the same cabinet design and the same PGAPXCAR2025 replacement cartridge. The filter will not properly replace cartridges meant for different Infinity-branded Air Cleaner cabinets that use the thicker GAPCCCAR filters.

One major distributor reported that wrong-filter orders were so common that, once they added bold compatibility notices to their Carrier Enterprise product page, return requests tied to sizing and cross-series confusion dropped by about 22 percent in a single quarter. The lesson is clear: a few minutes verifying your cabinet and part number can save a lot of frustration.

Confirming Your Cabinet Uses the PGAPXCAR2025-A02

Start with the filter that is currently installed. Look for a label printed along the side of the cartridge; in many cases you will see a base number such as PGAPXCAR2025, an extended number ending in A02, or a factory part sticker that matches this family. If the label is legible, match that number when you reorder.

Size Tip: The last 4 digits in the part number represent the size. For example, PGAPXCAR2025 = 20x25 inches. Look near the end of the filter frame for the complete model number.

If the filter label is missing or unreadable, check the air purifier cabinet itself. On the door or inside lip, you may see cabinet model numbers that include "GAPAXX," "DGAPAXX," or similar codes followed by "2025," which indicates the 20x25 cabinet size. These cabinets are designed around the PGAPXCAR2025-style cartridge, even if the installed filter may carry a slightly different suffix.

Some newer documents and labels list AGAPXCAR2025 as the updated part number replacing older PGAPXCAR2025 variants. Carrier is transitioning from PGAPXCAR to AGAPXCAR model numbers—both work identically in your PGAPAXX2025 cabinet. In those situations, a compatible option is an AGAPXCAR2025 20x25x3 air purifier replacement cartridge, which is engineered to fit the same cabinets.

To avoid confusion between series, notice how the cabinet is branded. Performance or Evolution-style media air cleaners that use a separate, slide-in 20x25x3 cartridge are the typical match for PGAPXCAR2025-A02. Infinity systems often use different, proprietary cartridges and should not receive this filter, even if the opening appears similar.

PGAPXCAR2025-A02 Part Number Cross-Reference

Across manuals, labels, and older invoices, you may see several related numbers that all point back to the same style of cartridge. Common references include PGAPXCAR2025, PGAPXCAR2025-A02, AGAPXCAR2025, and cabinet model codes such as DGAPAXX2025. Although the naming can be confusing, what matters most is matching the cabinet series and the "2025" size designation.

Understanding the Suffix: The last 3 digits after the dash (-A01, -A02, -A05) represent the pack size for how the filter was shipped from the manufacturer—they are all the same filter, just different quantities per package. So if you're replacing a PGAPXCAR2025-A02, you can use a filter listed as PGAPXCAR2025-A01, PGAPXCAR2025, or the new model number AGAPXCAR2025.

If your measurement or label shows a different nominal size, such as 20x20x3 or 16x25x3, you will need the corresponding cartridge for that cabinet instead of a PGAPXCAR2025 family filter. For example, a 20x20 cabinet will typically use a PGAPXCAR2020 20x20x3 cartridge, while some 16x25 cabinets rely on a PGAPXCAR1625 16x25x3 replacement.

For homeowners who have inherited mixed paperwork or older labeling, a dedicated compatibility article such as Atomic Filters' PGAPXCAR2025 to AGAPXCAR2025 part-number update overview can help reconcile the older and newer codes so you can buy with confidence.

Carrier PGAPXCAR2025-A02 Specifications: Size, MERV Rating & Materials

Once you know the PGAPXCAR2025-A02 is the right family for your cabinet, the next step is understanding its dimensions and performance characteristics. Because media filters are identified by both nominal and actual sizes, the details in this section help you confirm a precise fit and understand how this cartridge will behave in your system.

PGAPXCAR2025-A02 Specifications at a Glance

Nominal vs Actual 20x25x3 Filter Size

"20x25x3" is a nominal size, which means it is rounded for convenience and will not match a tape-measure reading exactly. The actual outer dimensions (21" x 24.9" x 2.6") are deliberately sized so the cartridge seals tightly inside the cabinet without rattling or allowing air to bypass around the edges.

To verify that your cabinet will accept this style of cartridge, remove the existing filter and measure the opening in the cabinet, not just the old filter's frame. Then compare your measurements with the actual size values above, allowing for a small margin so the filter slides in but still fits snugly on all sides.

Because many DIY installers confuse nominal and actual size, a dedicated sizing resource such as the Atomic Filters nominal vs actual sizes guide can be invaluable.

Why a MERV 13 PGAPXCAR2025-A02 Filter Is Worth the Investment

MERV 13 media filters like the PGAPXCAR2025-A02 provide much more than just basic dust control. When paired with a cabinet designed for deep-pleated cartridges, they can significantly improve indoor air quality while also protecting the internal components of your HVAC system.

Indoor Air Quality and Comfort Benefits

Compared with standard one-inch fiberglass filters, this MERV 13 cartridge captures 90%+ of particles in the 3-10 micron range, including common triggers for allergies and respiratory irritation such as pollen, pet dander, mold spores, and much of the fine dust that would otherwise settle on surfaces throughout your home.

The deeper pleats and high-efficiency media also help reduce smoke particles and some bacteria-sized contaminants. Many homeowners notice that surfaces stay cleaner between dustings and that rooms feel less stuffy when a properly sized media purifier is maintained on schedule. For more details on how MERV ratings affect filtration, see our complete MERV 8 vs MERV 11 vs MERV 13 comparison guide.

System Protection and HVAC Performance

Because almost all of the air your system moves passes through this cartridge, capturing debris here greatly reduces the amount that reaches your blower wheel and indoor coil. Over time, that can mean fewer service calls related to dirty components and more consistent comfort because airflow stays closer to design levels between tune-ups.

Some homeowners worry that high-efficiency filters are too restrictive, but modern HVAC designs and filter cabinets are engineered with this media in mind. The U.S. EPA indoor air quality guidance notes that MERV 13 filters are generally suitable for most residential systems.

OEM vs Compatible Filter Options

When purchasing your PGAPXCAR2025 replacement, you have two options:

For a detailed comparison of both options, see our Carrier PGAPXCAR2025 vs Atomic Compatible Filter guide.

Buying a 2-pack of compatible 20x25x3 cartridges also makes your maintenance more efficient. One filter goes straight into the cabinet, while the second is stored clean and dry for your next scheduled change, reducing the chance you will forget to order or push a dirty filter beyond its ideal service life.

How to Replace Your 20x25x3 PGAPXCAR2025-A02 Filter Cartridge Safely (Step-by-Step)

Once you have the correct 20x25x3 cartridge in hand, replacing it is a straightforward task. However, because this air purifier system utilizes high voltage, taking proper safety precautions is essential. Many homeowners prefer to have their HVAC service contractor replace the filter during scheduled system maintenance to ensure proper installation and avoid potential electrical hazards.

Safety and Preparation Checklist

Before you open the cabinet, shut off power to the HVAC system. Turn the thermostat to "Off," and for extra safety, switch off the furnace or air handler at the service switch or breaker so the blower cannot start while you are working.

Gather the items you will need:

• New 20x25x3 PGAPXCAR2025-style cartridge (from your 2-pack)
• Flashlight or work light
• Permanent marker for labeling installation date
• Gloves and dust mask (recommended)

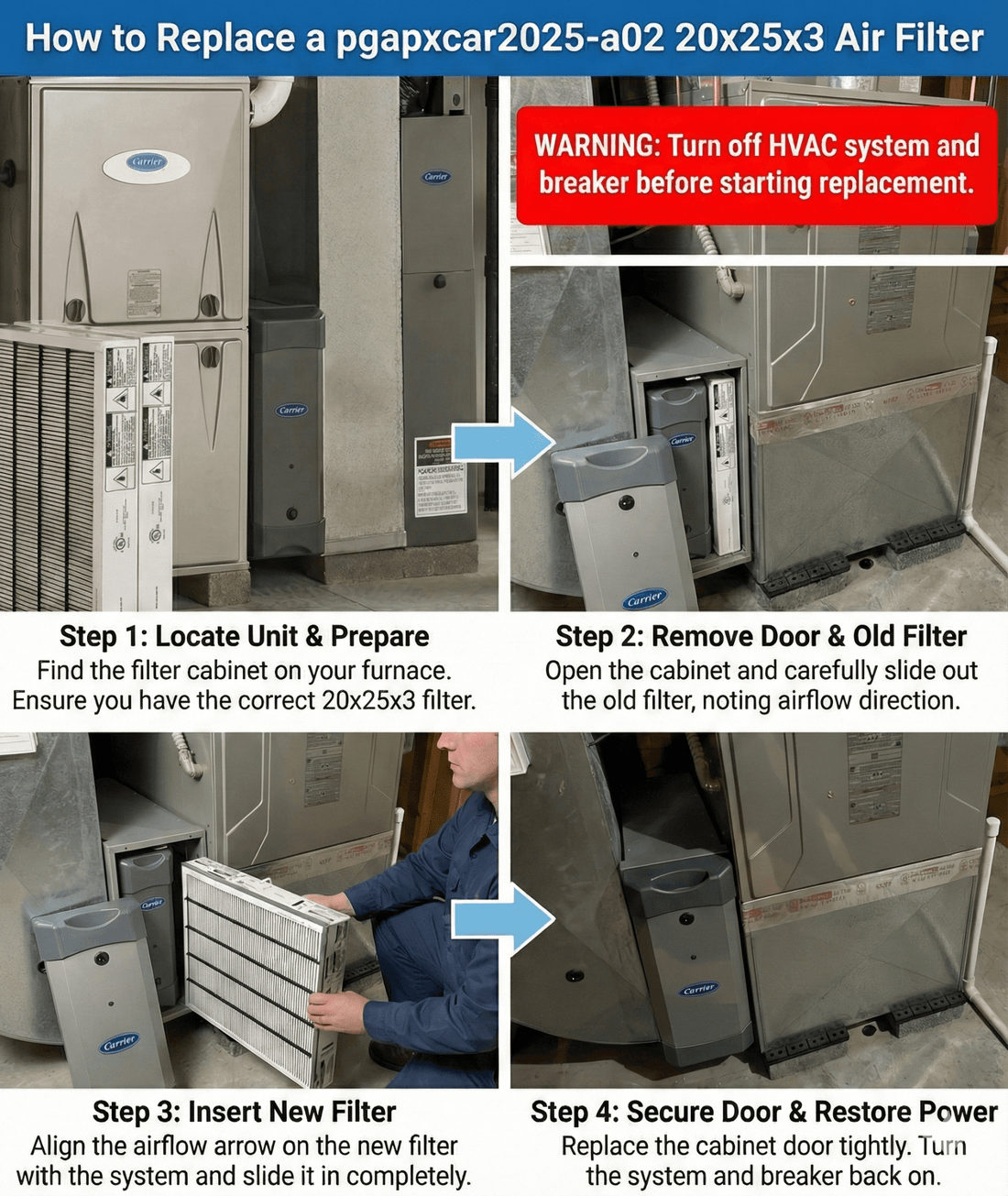

Step-by-Step PGAPXCAR2025-A02 Replacement Process

1. Turn off the system completely. Use the thermostat to turn your HVAC system to "Off," then locate the service switch or breaker and shut off power to the furnace or air handler. Waiting a minute or two ensures the blower fan has fully stopped. This step prevents the system from pulling unfiltered air—or the old filter itself—into the unit while you are working.
2. Open the air purifier cabinet. Find the media air cleaner attached to the return side of your furnace or air handler; it often has a removable door or panel where the filter slides in. Release any latches or remove screws to open the access panel, keeping them in a safe spot so nothing is lost. Use a flashlight to see how the existing cartridge is oriented before you start pulling it out.
3. Slide out the old filter and note its orientation. Grasp the end of the cartridge and carefully pull it straight out, supporting its weight so it does not bend or spill dust. Look for the airflow arrow and remember which direction it was pointing relative to the furnace or air handler. Take a moment to check the frame for a part number and verify that it matches the PGAPXCAR2025 family information you collected earlier.
4. Inspect the old filter and cabinet interior. With the cartridge out, visually check how loaded the media is; if it is heavily gray or brown across the entire surface, shortening your future replacement interval may be wise. Shine your light inside the cabinet and look for dust buildup on the rails or around the opening. Note the position of the electrical contact points on the cabinet rails—your new filter's foil tabs must align with these contacts.
5. Unpack the new PGAPXCAR2025-A02 style cartridge. Open the box carefully so you do not crush the filter corners, and avoid touching the media surface more than necessary. Confirm that the nominal size reads 20x25x3 and that the frame style matches the cartridge you removed. Locate the airflow arrow on the frame so you are ready to orient it correctly during installation.
6. Align the airflow arrow and slide the new filter into place. Position the new cartridge so the airflow arrow points toward the furnace or air handler, matching the direction you observed earlier. This orientation is critical because the foil contact tabs on the filter must align with the contact springs inside the cabinet. Gently slide the filter into the cabinet tracks and push it firmly toward the back of the cabinet until the end of the frame seats fully—some new filters have fuller foam gaskets and require extra pressure. The fit should be snug; if the green light shows 2 flashes after powering on, the contacts aren't making proper connection.
7. Close and secure the cabinet door. Replace the access panel, making sure it sits flat and tight against the cabinet so return air cannot leak around it. Re-engage any latches or reinstall screws, tightening them evenly to avoid distorting the door. An air-tight seal here supports both filtration performance and system efficiency.
8. Restore power and check system operation. Turn the breaker or service switch back on, then set the thermostat to your normal heating or cooling mode. Turn the air purifier power switch to the ON position. The green indicator light above the power switch should illuminate solid when the door is installed, the switch is ON, and the furnace blower is running. If the light shows 2 flashes, the filter contacts are not connecting properly—see the troubleshooting section below. Listen for the blower to start and verify that there are no unusual noises or rattles coming from the purifier cabinet.
9. Label the filter and store your spare. Use a permanent marker to write the installation date and expected replacement month on the filter frame so anyone servicing the system can see it at a glance. If you purchased a 2-pack, store the unused cartridge in a clean, dry place away from moisture and direct sunlight. Finally, set a calendar reminder—typically 6–9 months out (or up to 12 months in low-dust homes)—so you remember to swap in the spare on schedule.

Common Installation Errors & Troubleshooting

If your air purifier shows a 2 flashing green lights error code after installing a new filter, the most common causes are:

For detailed troubleshooting steps and images, see our complete guide: Resolve PGAPXCAR2025 Error Code 2 Flashes on DGAPAXX2025.

Frequently Asked Questions

How does using a PGAPXCAR2025-A02 filter affect my energy bills over time?

A properly matched MERV 13 media filter can actually help stabilize energy costs by keeping coils and blower components cleaner, which supports designed airflow. While overly dirty or incorrect filters can increase resistance and raise energy use, staying on a regular replacement schedule with the right 20x25x3 cartridge helps your system run closer to its intended efficiency.

What should I do with my old PGAPXCAR2025-A02 filter after replacement?

Place the used cartridge directly into a trash bag to contain dust, then dispose of it with household waste unless your local recycling program specifically accepts HVAC filters. Avoid banging or shaking it indoors, as that can release captured particles back into the air.

Can I use the PGAPXCAR2025-A02 alongside other indoor air quality products like UV lights or portable purifiers?

Yes, this media filter complements rather than replaces products like UV germicidal lamps, dehumidifiers, or room purifiers. The cartridge handles whole-home particulate filtration, while other devices can target microbes, odors, or specific problem areas for a more complete IAQ strategy.

What are early signs my filter needs to be replaced sooner than planned?

If you notice more dust settling than usual, worsening allergy or asthma symptoms, reduced airflow from supply vents, or your system running longer to maintain temperature, the cartridge may be loading faster than expected. In those cases, inspect the filter and consider shortening your change interval going forward.

Is the PGAPXCAR2025-A02 a good choice for homes with pets or smokers?

Yes, MERV 13 media filters are well-suited for homes with pets or light indoor smoking because they capture fine dander and many smoke particles more effectively than standard 1-inch filters. For heavy smoking or strong odors, pairing this filter with additional odor-control solutions (like activated carbon products or better ventilation) may be necessary.

How should I store the spare filter from my 2-pack to keep it in good condition?

Keep the spare in its original packaging, stored flat in a dry, temperature-stable area away from direct sunlight and moisture. Avoid compressing or stacking heavy items on top of it so the frame and pleats stay straight and undamaged until installation.

What happens if I accidentally force the wrong 20x25x3 filter into my cabinet?

Forcing a mismatched cartridge can distort the frame, create air leaks, and increase pressure drop, which may stress your blower and reduce filtration performance. If you suspect the fit is wrong or too tight, remove the filter, inspect for damage, and verify part numbers and cabinet model before running the system.

What is the difference between PGAPXCAR2025 and AGAPXCAR2025?

They are the same filter. Carrier is transitioning from PGAPXCAR to AGAPXCAR model numbers. Both work identically in your PGAPAXX2025 cabinet. The -A01, -A02, and -A05 suffixes indicate the case pack quantity from the manufacturer, not different filters.

Can I use an Infinity Series filter in my Performance Series cabinet?

No. Performance Series (PGAPXCAR) filters are 2.6 inches deep with foam gaskets, while Infinity Series (GAPCCCAR) filters are 3.5 inches deep without foam gaskets. They are not interchangeable and using the wrong filter could damage your system or result in poor filtration.

Does the Bryant Evolution Air Purifier use the same filter as the Carrier Infinity Air Purifier?

Yes. The Bryant Evolution Air Purifier and Carrier Infinity Air Purifier are the same system (Model DGAPA) sold under different brand names. Both use the PGAPXCAR2025 replacement cartridge for 20x25 cabinet sizes. Payne also sells an equivalent system using the same filters.

Why is my air purifier showing 2 flashing green lights after installing a new filter?

The 2 flashes error code typically indicates a filter ground circuit fault. The most common causes are: (1) the filter is installed backwards—the foil contact tabs must align with the cabinet contacts, so check that airflow arrows match; (2) the filter isn't pushed fully to the back of the cabinet—some new filters have fuller foam gaskets and need extra pressure to seat properly; or (3) the wrong filter type is installed. See our complete error code troubleshooting guide for detailed solutions.

Should I replace the filter myself or have my HVAC contractor do it?

While filter replacement is straightforward, this air purifier system utilizes high voltage. If you're not comfortable working around electrical equipment, we recommend having your HVAC service contractor replace the filter during scheduled system maintenance. Always turn off all power to the system before opening the cabinet, and be aware there may be more than one disconnect switch.

Putting Your PGAPXCAR2025-A02 2-Pack to Work in Your Home

Managing your air purifier becomes much easier once you know how the PGAPXCAR2025-A02 cartridge fits into your specific cabinet, what its key specs mean, and how to replace it safely. With a confirmed 20x25x3 size, the correct series, and a clear replacement process, you can protect both your indoor air quality and your HVAC equipment with minimal hassle.

For most households, keeping a PGAPXCAR2025-style 2-pack on the shelf supports a predictable 6–12 month change cycle, even in homes with pets or higher dust loads. One filter works now, while the second is reserved for the next scheduled change, eliminating last-minute runs to the store and reducing the risk of running a clogged cartridge longer than you should.
