$ 71.75 $ 99.95

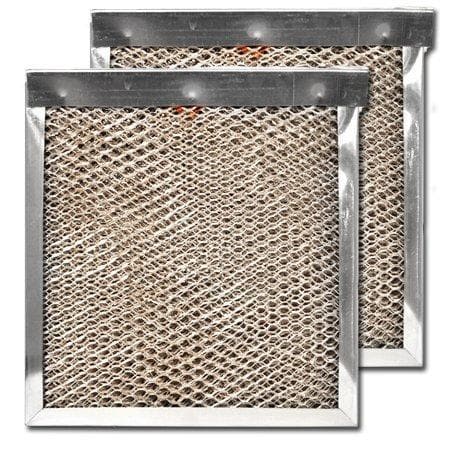

Whole House Humidifier Filter - 2-Pack This high-quality product is made by a leading manufacturer to replace the humidifier filter ( water panel, water pad, evaporator pad) in many makes and models of whole house humidifier filters. This product is found in the small bypass and small fan-powered humidifiers manufactured by Bryant, Carrier, Totaline, Day & Night, Payne and many others. This humidifier filter includes an integral aluminum frame and felt wick on top for even distribution of water through the media. The filter is constructed using an expanded aluminum mesh pad covered with a special clay-like coating that absorbs water and removes mineral deposits. The process of humidification begins when water flows through a humidifier valve and soaks the filter. Hot, dry air from the furnace or fan coil passes through the filter and absorbs the water. The moist air is then distributed through the home via the forced-air duct system. It is recommended you replace your whole house humidifier filter at least once per heating season. Areas with hard water may require two changes per season to ensure peak performance. Features: High quality, low-cost alternative to factory original product. Made to fit your whole house humidifier. Dimensions are approximately 10-1/2" X 11-1/2" X 1-1/2".
$ 16.95 $ 39.95Size Guide
Lennox Healthy Climate #35 Water Panel Evaporator - # X2661 Size: 10 x 13 x 1-1/2 Lennox Healthy Climate #35 Water Panel Evaporator- # X2661, your whole-house humidifier, the Water...
$ 34.95 $ 49.95Size Guide
Skuttle Evaporator Pad Part # A04-1725-052 fits whole house humidifiers from Skuttle, White-Rodgers, Goodman and others. 2-Pack Original Factory Replacement Water Panel Evaporator This high-quality product is made by a...
$ 14.48 $ 21.95Size Guide
The Aprilaire 10 replacement humidifier water panel filter generates the humidity in whole house humidifier systems. Humidity makes air easier to breathe and can soothe troublesome winter symptoms. In warmer...
When you are buying your air filter online most important thing to know is Air Filters have two sizes that you need to understand the Nominal size and the Actual Size. Not understanding these numbers often leads to consumers purchasing a filter that does not fit their Furnace or HVAC system.
Not understanding the Nominal Filter Size is the primary culprit for incorrectly purchased filters.The Nominal Size is the usually the dimensions used to Label the filter. For instance 16x20x1. These dimensions are a rounded value on the filters actual measurements. The actual measurements on this filter may be 15.5x19.5x.75, but that could vary by brand and manufacturer. So in order to make sure you have the correct size filter, especially if you are replacing with a different brand it is important to confirm the actual size on the filter. When purchasing filters on the internet the Nominal size is usually found in the product title.
The actual size as you might have guessed are the actual dimensions of the filter by length, width and thickness. This size is often on the filter right below the Nominal size and is usually labeled as the actual size. When you are buying a filter online the actual size is sometime in the product bullet point or the product description. If your filter does not have actual dimensions on the outside of the filter, you can measure you filter to get the correct dimensions. Some brands have a foam gasket on the outside of the filter, in this case, you will want to make sure you have a compatible actual size and that it also has the foam to ensure a snug fit.
|Size||Example 1||Example 2|
Furnace filters should fit securely but should not have to be forced into position. If you have to force the filter into its slot, then it is probably too big. Forcing an improper filter size in a filter can cause it to buckle, damaging the filter or reducing its ability to function properly. Filters are a smaller than their slot to allow for easy replacement. Some HVAC units may need a filter with dimensions that are unique or uncommon. In these cases, a custom filter needs to be ordered.
