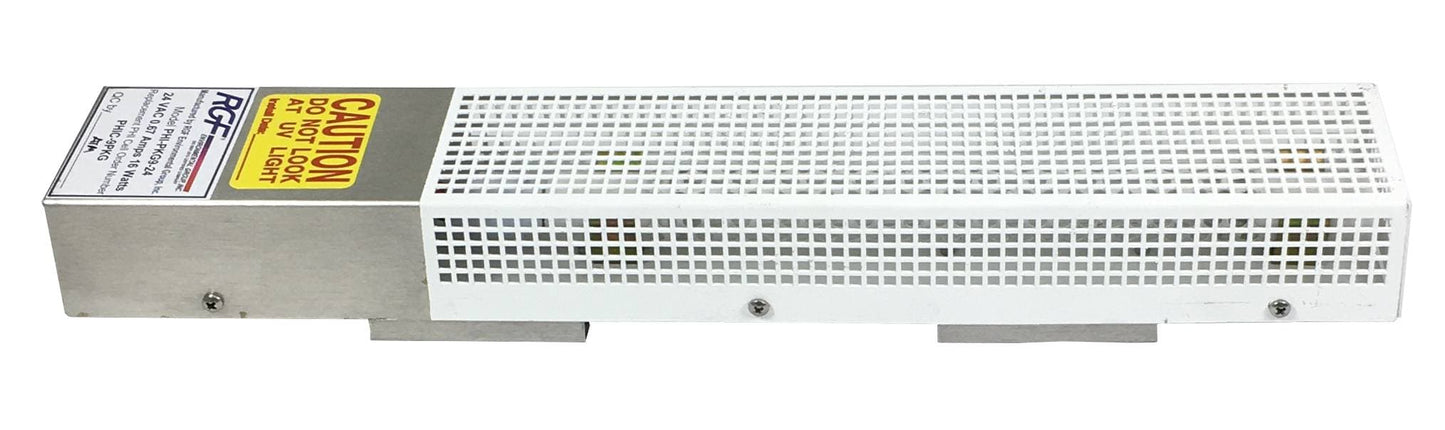

The magnetic-mount Package Unit by RGF® is a PHI-Cell® technology. This product is specifically designed for package systems, but it has been used in a wide variety of applications due to its versatile magnetic mount installation. Adjustable magnetic feet attach without fasteners to the blower unit itself making installation as trouble-free as possible. Perfect for all applications where ductwork is hard to get to or modification to existing or HVAC systems in rental units is not an option.
This 24V model connects directly into the control box of the HVAC unit. Now available in 5”, 9”, and 14” cells which handle package products from 1.5 to 20 tons.
Note: We highly recommend these units be installed by a licensed electrician or HVAC professional.
- Kills bacteria, viruses and mold
- Reduces odors and VOCs (chemical odors)
- Easy, no-tool installation
| Item # |
PHI-PKG9-24V |
| HVAC Blower Size |
1,200 to 3,000 CFM |
| Tonnage |
3.5 to 7.5 ton |
| Dimensions |
2.25″W x 13.5”L x 1.75”D |
| Ship Wt. |
1 lb. |
| Replacement Cell Part # |
PHIC-9PKG |
| Description |
Package PHI Cell 9” |
| Technology |
PHI-CELL®
|
| Recommended Cell Replacement |
18,000 – 25,000 hrs. |
| Volts |
24 VAC |
| Amps |
0.48 A |
| Watts |
11 W |
| Tonnage |
3.5 to 7.5 tons |
| CFM’s |
1200– 3,000 |
| Installation |
Air handler cabinet / magnetic mount |
| Material |
Aluminum |
| Dimensions |
2.25” W x 10.5” L x 1.75” D |
| Hydro-Peroxides |
<.02 PPM |
